1-86182-2 - TE Connectivity
TE Connectivity
1-86182-2
1-0086182-2
1-0086182-2
PCB-Connectors
AMPMODU Mod I
Datasheets
Datasheets
Technical Characteristics
Technical Characteristics
Product Type Features
- Connector & Contact Terminates To:Printed Circuit Board
- Product Type:Contact
Configuration Features
- PCB Mount Orientation:Vertical
Electrical Characteristics
- Contact Resistance(mO):12
- Dielectric Withstanding Voltage:1200 VAC
- Insulation Resistance(MO):5000
Contact Features
- Contact Base Material:Brass
- PCB Contact Termination Area Plating Material:Gold
- Contact Underplating Material:Nickel
- Contact Type:Post
- Contact Mating Area Plating Material:Gold
- Contact Current Rating (Max)(A):5
- Mating Post Length:20.32mm[.8in]
- Contact Mating Area Length:20.32mm[.8in]
- Contact Mating Area Plating Thickness(µin):30
Termination Features
- Termination End Plating Thickness(µin):30
- Termination End Plating Material:Gold Over Nickel
- Termination Post Length:3.81mm[.15in]
Mechanical Attachment
- Wire Insulation Support:Without
Dimensions

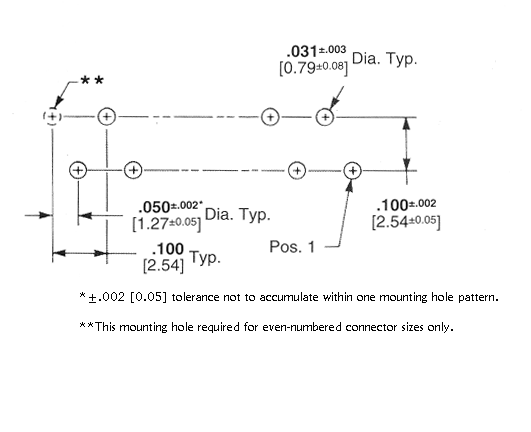

- Hole Size (Recommended):1.98mm[.078in]
Usage Conditions
- Operating Temperature Range(°C):-65 – 105
Packaging Features
- Packaging Method:Loose Piece
- Packaging Quantity:1000
Other
- Comment:Minimum nominal centerline spacing between adjacent contacts is .125 Post center may vary depending on requirements Strip form posts applied with Insertion Machine Number 3-457382-1, includes power unit and applicator.
