211824-1 - TE Connectivity
TE Connectivity
211824-1
0-0211824-1
0-0211824-1
Circular Connectors
CPC Steckgehäuse für
Büchsenkontakt 23-13
Büchsenkontakt 23-13
Datasheets
Datasheets
Technical Characteristics
Technical Characteristics
Product Description
CPC series 4 connectors accept size 16 Multimate and Type XII power contacts, combining the signal and coaxial capabilities of Series 1 connectors with the power capabilities of Series 3 connectors. 13, 16 and 22 positions.
Product Type Features
- Product Type:Housing
- Connector System:Wire-to-Wire
- Sealable:No
- Housing Type:Plug
- Contact Type:Socket
- Shell Type:All Plastic
Configuration Features
- Number of Positions:13
- Number of Power Positions:5
- Number of Signal Positions:8
- Reverse Numbering:Without
Body Features
- Thread Size:1-3/8 - 18 UNEF-2A
Contact Features
- Reverse Gender:Standard
- Contact Protection:With
Mechanical Attachment
- Mating Alignment:With
- Mating Retention:With
- Mating Retention Type:Threaded Coupling
- Mating Alignment Type:Keyed
Housing Features
- Housing Color:Black
- Housing Material:Thermoplastic
- Shell Size:23
- UL Flammability Rating:UL 94V-0
- Body Orientation:Straight

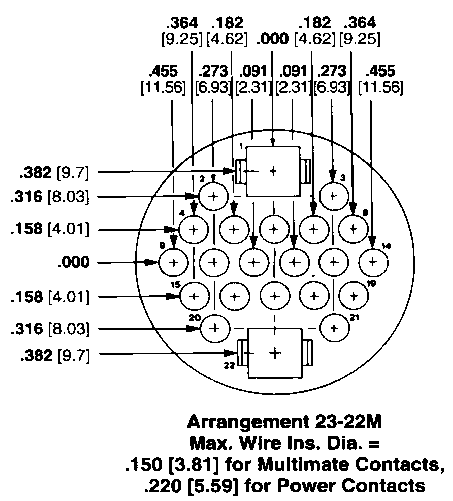

Dimensions
- Power Conductor Insulation Diameter:5.59mm[.22in]
- Signal Conductor Insulation Diameter:3.81mm[.15in]
Usage Conditions
- Fluid Resistance:None
Industry Standards
- VDE Tested:No
Packaging Features
- Packaging Method:Bag
- Packaging Quantity:100
Accessories
Accessories
No details available.
