34294-0 - TE Connectivity
TE Connectivity
34294-0
0-0034294-0
0-0034294-0
Contacts and Splices
Terminal|509-3,260 CMA
Tab Tongue
Tab Tongue
Datasheets
Datasheets
Technical Characteristics
Technical Characteristics
Product Description
Pre-Insulated Diamond Grip Tabs
Product Type Features
- Barrel Type:Closed Barrel
- Wire/Cable Type:Regular Wire
- Insulated:Yes
- Support Style:Insulation Support
Body Features
- Insulation Color:Red
- Plating Material:Tin
- Insulation Material:Nylon
- Sleeve Material:Nylon
Contact Features
- Terminal Type:Tab

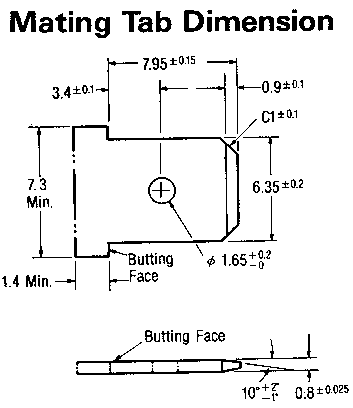

- Tab Thickness:.84mm[.033in]
- Terminal Orientation:Straight
Mechanical Attachment
- Wire Insulation Support:Without
Dimensions
- Wire Insulation Diameter:2.67 – 3.56mm[.105 – .14in]
- Wire Size(mm²):.3 – 1.42
- Wire Size(CMA):509 – 3260
- Barrel Inside Diameter:3.7mm[.145in]
- Material Thickness(in):.031
- Overall Length:22.96mm[.904in]
Operation/Application
- Connects To:Tab
- Heavy Duty:No
Packaging Features
- Packaging Method:Loose Piece
- Packaging Quantity:1000
Other
- Barrel Color:Red
