5-520424-1 - TE Connectivity
TE Connectivity
5-520424-1
5-0520424-1
5-0520424-1
Other Connectors
Shielded Data Link
Datasheets
Datasheets
Technical Characteristics
Technical Characteristics
Product Type Features
- Connector Style:Plug
- Cable Type:Round
- Connector System:Cable-to-Board
- Connector & Contact Terminates To:Wire & Cable
- Receptacle Configuration:Standard
- Product Type:Connector
Configuration Features
- Number of Conductors:4
- Number of Positions:4
- Keying:E
Body Features
- Shield Material:Carbon Steel
- Shield Plating Finish:Bright
- Shield Plating Material:Tin
Contact Features
- Contact Base Material:Copper Alloy
- Contact Current Rating (Max)(A):1.5
- Contact Mating Area Plating Thickness(µin):50
- Contact Mating Area Plating Material:Gold
Mechanical Attachment
- PCB Mount Retention:Without
- Connector Mounting Type:Cable Mount
Housing Features
- Centerline (Pitch):1.27mm[.05in]
- Housing Material:Polycarbonate GF
- Housing Color:Smoke Gray

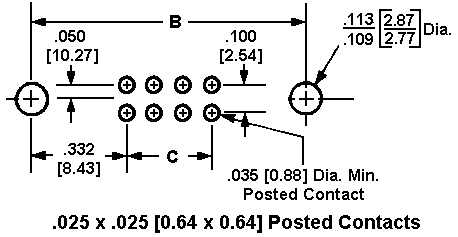

Dimensions
- Wire Size(mm²):.12 – .15, .205
- Wire Size(AWG):24, 26
- Conductor Insulation Diameter(in):.045 – .05, 1.14 – 1.27
Usage Conditions
- Operating Temperature Range:-20 – 80°C[-4 – 176°F]
Operation/Application
- Circuit Application:Signal
Industry Standards
- UL Flammability Rating:UL 94V-2
- Agency/Standard:CSA, UL
Other
- Comment:Plug assemblies for round cable need a top shield, bottom shield, boot, and ferrule.
