641324-1 - TE Connectivity
TE Connectivity
641324-1
0-0641324-1
0-0641324-1
Contacts and Splices
Terminal|
Datasheets
Datasheets
Technical Characteristics
Technical Characteristics
Product Description
Pre-Insulated Diamond Grip Low Insertion Force FASTON Receptacle
Product Type Features
- Terminates To:Wire & Cable
- FASTON:Yes
- Disconnect Type:Quick Disconnect Pin
- Insertion Force:Low
- Insulated:Yes
- Discrete Wire Type:Stranded
- Wire Stop:Yes
Electrical Characteristics
- Voltage (Max)(V):300
Body Features
- Fully Insulated:No
- Plating Material:Pre-Tin
- Insulation Material:Nylon
Contact Features
- Terminal Type:Receptacle
- Terminal Orientation:Straight
- Crimp Type:F-Crimp
Mechanical Attachment
- Wire Insulation Support:With
Dimensions
- Wire Size(AWG):26 – 24, 26 – 24
- Wire Size(mm²):.12 – .20

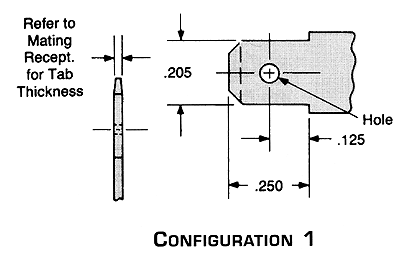

- Mating Tab Width:2.79mm[.11in]
- Mating Tab Thickness:.51mm[.02in]
- Receptacle Stock Thickness:.41mm[.016in]
- Wire Insulation Diameter (Max):2.08mm[.082in]
- Overall Length:17.811mm[.7in]
Usage Conditions
- Operating Temperature Range(°C):105
Industry Standards
- CSA Certified:No
- RU (UL Component Program):No
Packaging Features
- Packaging Method:Loose Piece
- Packaging Quantity:1000
Other
- Barrel Color:Yellow
Accessories
Accessories
No details available.
